Video and image gallery
Assembling an UPCON
The patented hinge mechanism is what underlies the UPCON design and function. The hinge is engaged by flexing the protruding finger which houses the socket receptacle. Once the hinge is engaged, the pressure on the ball and socket hold the panels together tightly, but they can be locked with a disposable pin to increase the strength of the hinge. The pins also secure the closed container as well, and prevents entry without a special tool to remove the disposable custom pins.
A Tool For Opening The UPCON
A simple tool, designed specifically for opening an UPCON container, would be provided for customers. If misplaced, two wide bladed common screw drivers or a paint can opener, or similar tool can substitute for the specialized tool.
Universal UPCON Edge Adapter
The 60" long UPCON edge adapter allows any size or shape plywood or thick plastic sheeting to adapt to a standard UPCON panel. This means roof-end panels or geometric-shaped panels can be adapted to make complex angles and shapes. The 60" edge can be cut down to the desired length or extended with multiple units locked end to end.

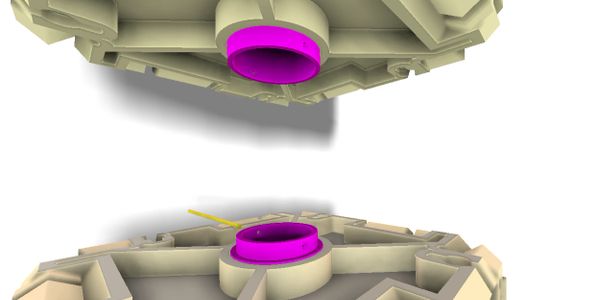

The Center Receiver Socket is KEY
This universally sized center socket provides a locking mechanism that serves multiple functions. A simple cardboard ring serves to stabilize UPCONs that are stacked on top of one another, such as when loading a pallet. The socket serves as a pick-up point for a robot during assembly, or for an inserted manual handle or pick-up ring. The socket is also the nest for the RFID antenna. In our drone delivery system, the release rings are also attached using the center-socket lock. All panels have the same exact center-socket dims.
Antimicrobial Plastic Resin Panels
An antimicrobial plastic is a synthetic polymer material containing an integrated active ingredient which makes it effective against microbial growth. Microban International is widely recognized as the world leader in built-in antimicrobial technology inhibiting the growth of bacteria, mold and mildew. Customized chemistries are incorporated into plastic products at the point of manufacture and will provide ongoing protection for the expected lifetime of the product.
